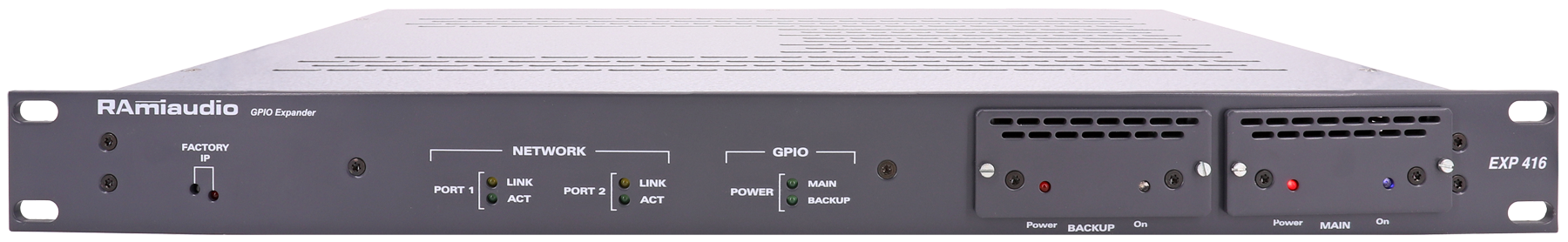

EXP416 allows the control and monitoring of different digital or analog devices via Ember+ or SNMP protocol to be combined in one device.

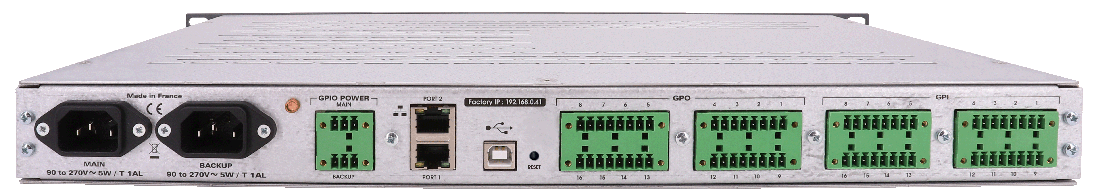

•     Simple and direct interfacing of all existing equipment with parallel contacts.
•     16 digital inputs on Opto.
•     16 digital outputs on Opto Mos.
•     2 Ethernet 10/100 Base-T ports.
•     1 USB Device 2.0 port.
•     Individual configuration via the integrated web server of the Loop or GPI voltage mode.
•     Individual configuration via the integrated web server of the Loop or GPO voltage mode.
•     Individual configuration of the GPO voltage 24V/12V/5V via the web server.
•     Real-time visualisation via the embedded web server of the status of each input/output.
•     Dual power supply with automatic switching.
•     Dual GPIO polarisation power supply with automatic switching.
•     Backup and recovery of the device configuration file.
